All Product > Barcode Scanner > OPTICON
Brand: Opticon Kategori: Barcode scanner
OPTICON OPI-3601 Barcode Scanners

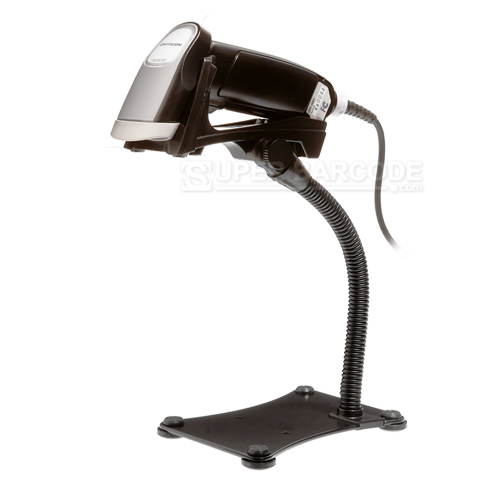

OPTICON OPL-3601 Barcode Scanner
    • Jenis      :   Barcode Scanner
    • Tipe       :   OPI3601
    • Merek    :   opticon
    • Stock     :   Tersedia
    • Kondisi  :   Baru
    • Garansi  :  12 Bulan
    • Harga    :   Rp. 2.100.000


                IDR 1.995.000
              ( *Harga dapat berubah sewaktu-waktu )

              Silahkan hubungi kami segera untuk informasi
              harga produk terbaru dan ketersediaan produk

              Bank transfer



              SPESIFIKASI PRODUK :
              OPERATING INDICATORS
              VISUAL: 1 LED / large LED (red/green/orange)
              NON-VISUAL: Buzzer

              OPERATING KEYS
              ENTRY OPTIONS: 1 scan key

              COMMUNICATION
              RS232: DB9 PTF connector with external power supply
              KEYBOARD WEDGE: Mini-DIN6 F/M connector
              USB: Ver. 2.0, HID/VCP, USB-A connector

              POWER
              VOLTAGE REQUIREMENT: 6V +/- 5% (Keyboard Wedge), 6V, min. 4.5, max.
              6.5V(RS232)
              CURRENT CONSUMPTION: Max. 350 mA (max typical use), 75mA (standby)

              2D IMAGER OPTICS
              LIGHT SOURCE: Green aiming LED, red illumination LEDs
              SCAN METHOD: CMOS area sensor, 752 x 480 pixels, gray scale
              SCAN RATE: 60 fps
              FOCAL DISTANCE: 104 mm
              TRIGGER MODE: Manual, multiple read, auto-trigger, stand detection
              IMAGE FORMAT: Windows Bitmap, JPEG, TIFF
              GRADULATION: 1024, 256, 16, 2
              IMAGE OUTPUT MODE: 4 resolutions (full,
              1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
              READING PITCH ANGLE: -50 to 0 ̊, 0 to +50 ̊
              READING SKEW ANGLE: -50 to 0 ̊, 0 to +50 ̊
              READING TILT ANGLE: 360 ̊
              CURVATURE: R>16 mm (12-digit 0.15 mm Codabar), R>20 mm (13-digit UPC)
              MIN. RESOLUTION CODE39 AT PCS 0.9: 0.127 mm / 5 mil,
              min. resolution QR Code and Data Matrix at PCS 0.9: 0.169 mm / 7 mil
              MIN.PCS VALUE: 0.45 Field of view: Horizontal 40.6 ̊, Vertical 26.4 ̊
              DEPTH OF FIELD: at Code 39, 65 - 105 mm / 2.56 - 4.13 in (0.127 mm / 5 mil), 45 - 185
              mm / 1.77 - 7.28 in (0.254 mm / 10 mil), 50 - 250 mm / 1.97 - 9.84 in (0.508
              mm / 20 mil) DEPTH OF FIELD: at QR Code, 70 - 95 mm / 2.76 - 3.74 in
              (0.211 mm / 8.4 mil), 35 - 165 mm /1.38 - 6.50 in (0.381 mm / 15 mil)

              SUPPORTED SYMBOLOGIES
              BARCODE (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code
              39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA,
              Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey,
              S-Code, Telepen, Tri-Optic, UK/Plessey
              POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
              2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite
              codes, Data Matrix (ECC200), Maxi Code (mode 2~5), MicroPDF417, Micro
              QR Code, Passport MRZ (OCR-B), PDF417, QR code

              DURABILITY
              TEMPERATURE IN OPERATION: -20 to 50 ̊C / -4 to 122 ̊F
              TEMPERATURE IN STORAGE: -20 to 60 ̊C / -4 to 140 ̊F
              HUMIDITY IN OPERATION: 5 - 90% (noncondensing)
              HUMIDITY IN STORAGE: 5 - 90% (non-condensing)
              AMBIENT LIGHT IMMUNITY: Fluorescent 10,000 lx max, Direct sun
              100,000 lx max, Incandescent 10,000 lx max
              DROP TEST: 1.5 m / 5 ft drop onto concrete surface
              VIBRATION TEST: 10 - 100 Hz with 2G for 1 hour
              PROTECTION RATE: IP 42

              PHYSICAL
              DIMENSIONS (W X H X D): 56 x 148.6 x 108.1 mm / 2.20 x 5.85 x 4.26 in
              WEIGHT BODY: Ca. 85 g / 3 oz (excl. cable)
              CASE: ABS, black or white

              REGULATORY & SAFETY
              PRODUCT COMPLIANCE: CE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1
              Class 1, IEC 60950-1

              ENCLOSED ITEMS
              Power supply 90-265V/0.5A, 6V/2A (for RS232 and Keyboard Wedge), Stand
